Windows 10 Unexpectedly Updated to 1803

A Windows 10 Pro machine unexpectedly updated from 1709 to 1803, even though it is on a domain with group policy to defer updates. The Microsoft product team reviewed logs and informed me that 1803 was offered on May 12 but the machine didn’t get the deferral policy until May 15. What happened?

This machine is connected to a Windows Server 2016 DC running the Essentials role and backing up daily. I restored the full image from May 6 and started researching its status.

TL;DR The deferral group policy had not applied as of May 6. Even though the machine was domain-joined, group policy stopped working on February 14 because the NIC was not recognized with a Domain profile. Once I got the NIC back on the domain, 1803 stopped downloading.

The system probably applied KB4074588 on February 14 and rebooted itself. After that, the NIC was no longer domain-authenticated. It is unclear whether that is an issue with that update, or with Network Location Awareness in general (as blogged here).

2018 Timeline

I restored the system to its May 6 state (details below). Tracking back through the event logs, I worked out this timeline:

Feb. 6 1:58pm – Machine first set up, network category “Domain Authenticated”

Feb 13 – Cumulative Update KB4074588 released

Feb. 14 5:44pm – Machine restarted itself due to a “service pack update,” probably KB4074588.

Feb. 14 5:47pm – Network lost “Domain authenticated” status; came back up as “Private”.

Feb. 14 2:48pm – “The processing of Group policy failed because of lack of network connectivity”

Feb. 19 – I created and deployed deferral policies as blogged here.

Apr. 16 11:12am – Network now shows as “Public”, does not revert back to “Private”.

Jun. 2 12:03pm – Network once again “Domain Authenticated” after disjoining and rejoining domain. Group policy updates working.

Jun. 2 12:14pm – Group policy succeeded, adding new settings from 2 Group Policy objects.

Here are the relevant event logs entries:

Log Name:      Microsoft-Windows-NetworkProfile/Operational
Source:        Microsoft-Windows-NetworkProfile
Date:          2/6/2018 1:58:25 PM
Event ID:      10000
Task Category: None
Level:         Information
Keywords:      (35184372088832),(32)
User:          LOCAL SERVICE
Computer:      WIN10-MACHINE
Description:
Network Connected
	Name: mydomain.local
	Desc: mydomain.local
	Type: Managed
	State: Connected,IPV4 (Internet)
	Category: Domain Authenticated


Log Name:      Microsoft-Windows-NetworkProfile/Operational
Source:        Microsoft-Windows-NetworkProfile
Date:          2/14/2018 5:45:57 PM
Event ID:      10001
Task Category: None
Level:         Information
Keywords:      (35184372088832),(32)
User:          LOCAL SERVICE
Computer:      WIN10-MACHINE.mydomain.local
Description:
Network Disconnected
	Name: mydomain.local
	Desc: mydomain.local
	Type: Managed
	State: Disconnected
	Category: Domain Authenticated


Log Name:      System
Source:        User32
Date:          2/14/2018 5:44:02 PM
Event ID:      1074
Task Category: None
Level:         Information
Keywords:      Classic
User:          SYSTEM
Computer:      WIN10-MACHINE.mydomain.local
Description:
The process C:\Windows\system32\svchost.exe (WIN10-MACHINE) has initiated the restart of computer WIN10-MACHINE on behalf of user NT AUTHORITY\SYSTEM for the following reason: Operating System: Service pack (Planned)
 Reason Code: 0x80020010
 Shutdown Type: restart
 Comment:


Log Name:      Microsoft-Windows-NetworkProfile/Operational
Source:        Microsoft-Windows-NetworkProfile
Date:          2/14/2018 5:47:01 PM
Event ID:      10000
Task Category: None
Level:         Information
Keywords:      (35184372088832),(32)
User:          LOCAL SERVICE
Computer:      WIN10-MACHINE.mydomain.local
Description:
Network Connected
	Name: Network
	Desc: Network
	Type: Unmanaged
	State: Connected,IPV4 (Internet)
	Category: Private


Log Name:      System
Source:        Microsoft-Windows-GroupPolicy
Date:          2/14/2018 5:48:40 PM
Event ID:      1129
Task Category: None
Level:         Error
Keywords:
User:          SYSTEM
Computer:      WIN10-MACHINE.mydomain.local
Description:
The processing of Group Policy failed because of lack of network connectivity to a domain controller. This may be a transient condition. A success message would be generated once the machine gets connected to the domain controller and Group Policy has successfully processed. If you do not see a success message for several hours, then contact your administrator.


Log Name:      Microsoft-Windows-NetworkProfile/Operational
Source:        Microsoft-Windows-NetworkProfile
Date:          6/2/2018 12:03:36 PM
Event ID:      10000
Task Category: None
Level:         Information
Keywords:      (35184372088832),(32)
User:          LOCAL SERVICE
Computer:      WIN10-MACHINE.mydomain.local
Description:
Network Connected
	Name: mydomain.local
	Desc: mydomain.local
	Type: Managed
	State: Connected,IPV4 (Internet)
	Category: Domain Authenticated


Log Name:      System
Source:        Microsoft-Windows-GroupPolicy
Date:          6/2/2018 12:14:03 PM
Event ID:      1503
Task Category: None
Level:         Information
Keywords:
User:          mcbsys\MarkAdmin
Computer:      WIN10-MACHINE.mydomain.local
Description:
The Group Policy settings for the user were processed successfully. New settings from 2 Group Policy objects were detected and applied.

What to Do

If you rely on group policy to distribute deferral policy, make sure group policy is working:

  • Confirm the active network profile is Domain. If you have an RMM tool, you can use the script I wrote to check the firewall profile, which is also the network profile.
  • Confirm that the expected registry entries have been created. in particular
    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate\DeferFeatureUpdates
    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate\DeferFeatureUpdatesPeriodInDays
    This could also be scripted.

Initial Troubleshooting

For reference, here’s the step-by-step of what I found after restoring the May 6 image of this machine.

After connecting to the machine from the Hyper-V host and pressing Ctrl-Alt-Del, the initial logon screen shows _clientsetup_$, quite possibly the last user to log in “locally” as I usually use RDP for VMs:

Win10 Unexpected Upgrade 01

After clicking Other User, I get a normal, domain login screen, so it’s definitely on the domain:

Win10 Unexpected Upgrade 02

Remote access to the machine from Group Policy and regedit is not working (“RPC server is not available”).

RDP logon as domain admin fails (error 519).

Local logon from Hyper-V works, asks about network discoverability:

Win10 Unexpected Upgrade 03

After clicking Yes, it says I’m on a Private (not Domain) network:

Win10 Unexpected Upgrade 04

We’re definitely on Windows 10 Pro 1709:

Win10 Unexpected Upgrade 05Win10 Unexpected Upgrade 06

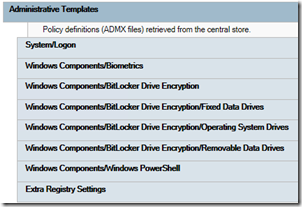

GPResult show that the Windows Components/Windows Update/Windows Update for Business group policy objects are NOT shown:

Win10 Unexpected Upgrade 07

The registry is missing the Update for Business keys:

Win10 Unexpected Upgrade 08

Ran gpupdate /force but the update failed “because of lack of network connectivity to a domain controller.”

No wonder the updates was not deferred. Sure enough, 1803 is downloading; it’s a race against time!

Win10 Unexpected Upgrade 09

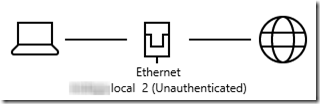

After disabling and re-enabling the NIC (and a long time “Identifying”), I have an “unauthenticated” domain connection, whatever that means:

Win10 Unexpected Upgrade 10

But it’s back to “Public”:

Win10 Unexpected Upgrade 11

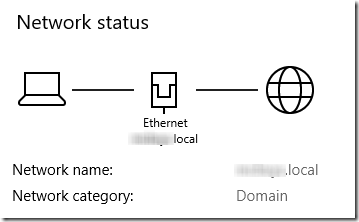

This long thread suggests disjoining and re-joining the domain to get the network authenticated. (I’ve had to do that before when restoring a system image—a little surprised it let me log in at all.) After the dis-join and re-join (and the two reboots required), the network is on the domain:

Win10 Unexpected Upgrade 12

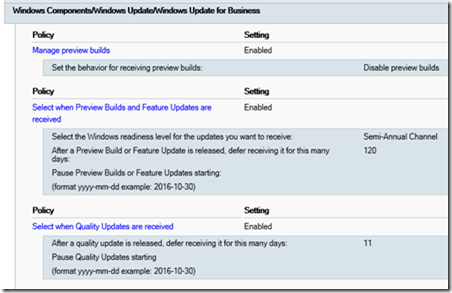

The deferral policies have been applied:

Win10 Unexpected Upgrade 13

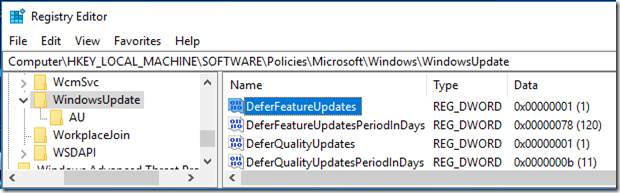

The registry entries are present:

Win10 Unexpected Upgrade 14

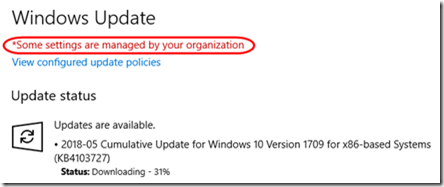

And the 1803 update has been cancelled with only the latest cumulative update downloading (note the reference to group policy management of updates):

Win10 Unexpected Upgrade 15
