Filter the System Log by Correlation ActivityID

I’m trying to figure out why my new Server 2016 with the Essentials role is getting System events 36874. In particular, if this is a certificate issue between a client and the server, which client are we talking about?

Note the highlighted line in the event’s XML:

Log Name:      System
Source:        Schannel
Event ID:      36874
User:          SYSTEM
Description:
An TLS 1.2 connection request was received from a remote client application, but none of the cipher suites supported by the client application are supported by the server. The TLS connection request has failed.
Event Xml:
<Event xmlns=”http://schemas.microsoft.com/win/2004/08/events/event”>
<System>
<Provider Name=”Schannel” Guid=”{1F678132-5938-4686-9FDC-C8FF68F15C85}” />
<EventID>36874</EventID>
<Version>0</Version>
<Level>2</Level>
<Task>0</Task>
<Opcode>0</Opcode>
<Keywords>0x8000000000000000</Keywords>
<TimeCreated SystemTime=”2017-08-04T08:06:56.497965700Z” />
<Correlation ActivityID=”{88A704FB-0CBC-0001-0F05-A788BC0CD301}” />
<Execution ProcessID=”632″ ThreadID=”11640″ />
<Channel>System</Channel>
<Security UserID=”S-1-5-18″ />
</System>
<EventData>
<Data Name=”Protocol”>TLS 1.2</Data>
</EventData>
</Event>

I got the impression from this article that if I found the other events with the same Correlation Activity ID, I might be able to figure out what client is involved. This TechNet article describes filtering the event log using XML filtering. After some tinkering, I came up with this XML filter to identify all System events with the same Correlation ActivityID:

<QueryList>
  <Query Id="0" Path="System">
    <Select Path="System">
      *[System[Correlation[@ActivityID='{88A704FB-0CBC-0001-0F05-A788BC0CD301}']]]
    </Select>
  </Query>
</QueryList>

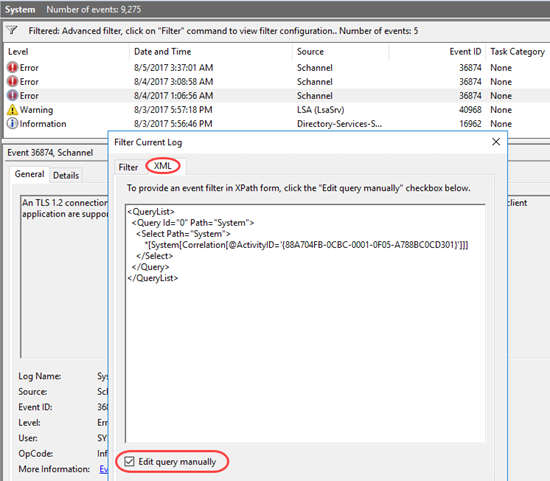

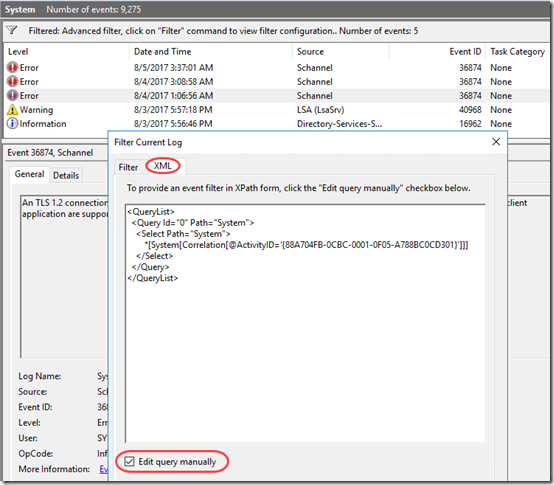

And it works:  after entering that filter on the XML tab, I see five related events. Still don’t know why I’m getting the TLS error, but now I see from the Information event that it’s possibly related to the Directory Services SAM database. Seems like this event filter might come in handy.

Filter Event Log
